Manufacturers of Stainless Steel Water Coolers, Domestic- Industrial Water Chillers and other Refrigeration Products. Polar Refrigeration and Manufacturing, LLC UAE have been one of the leading manufacturers of water coolers & chillers, and among the top sellers in the Middle East. Manufactured 100% in UAE, with an area with an important industrial fabric and logistics network.
Polar Refrigeration and Manufacturing LLC, UAE have been one of the leading manufacturers of water coolers & chillers, and among the top sellers in the Middle East. Manufactured 100% in UAE, with an area with an important industrial fabric and logistics network.
Polar has an active R&D department specialized in water coolers, which allows the company to launch new products and processes in the market. Factory specialized in water coolers, offers a broad range of models able to satisfy the needs and habits of different clients in a wide variety of countries. Flexible production in conjunction with the R&D department and deep market knowledge allows the company to design models that fulfill specific requirements.

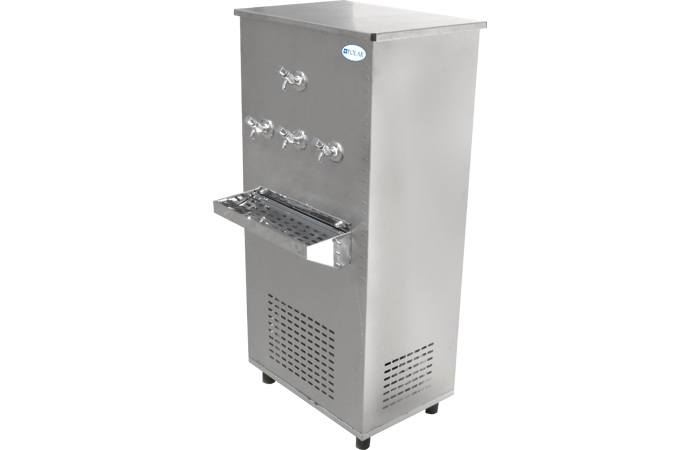

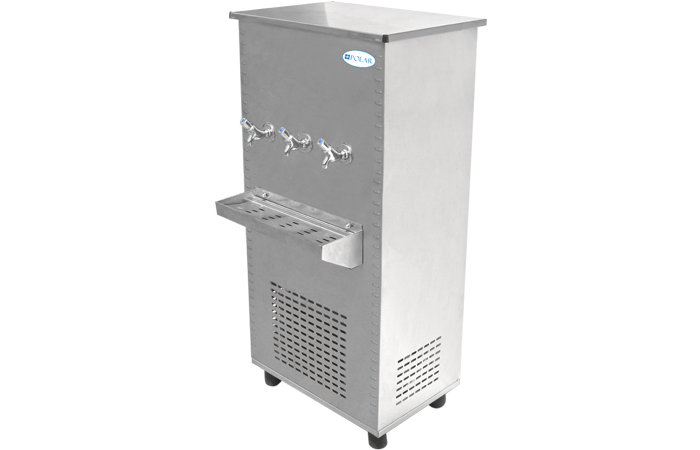

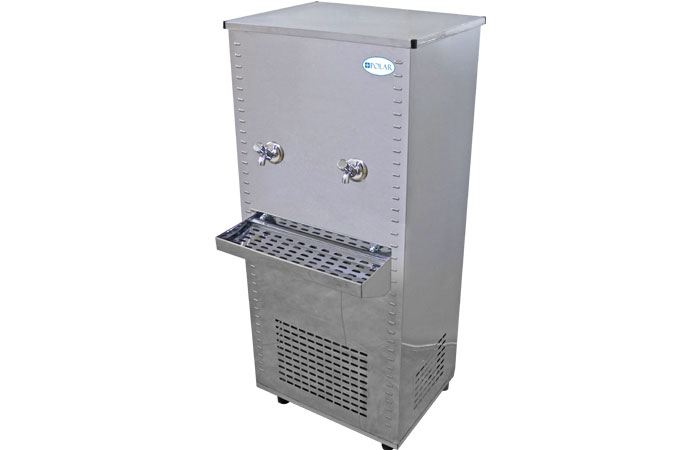

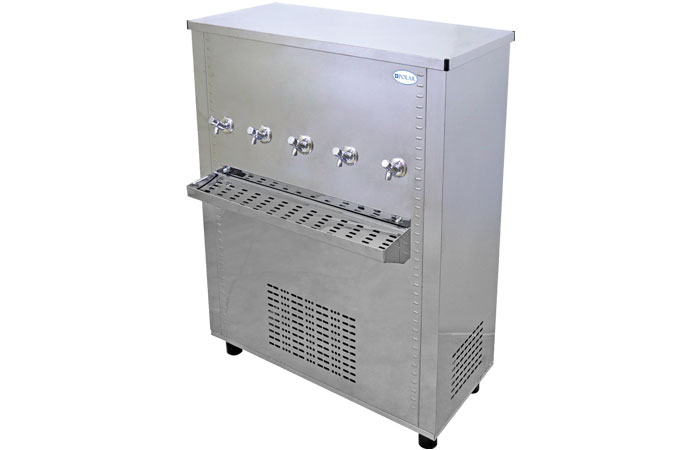

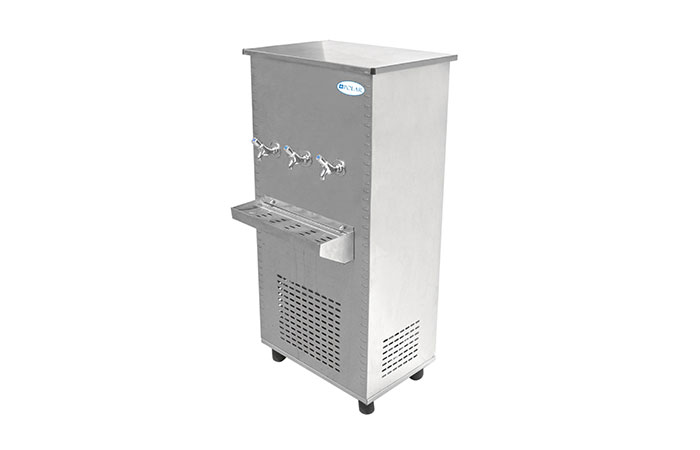

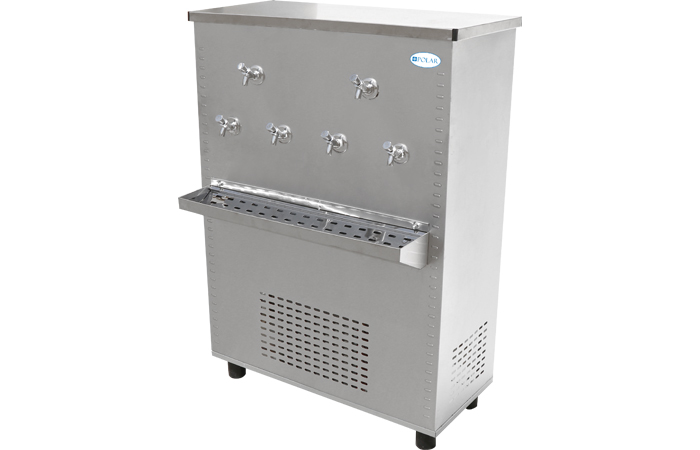

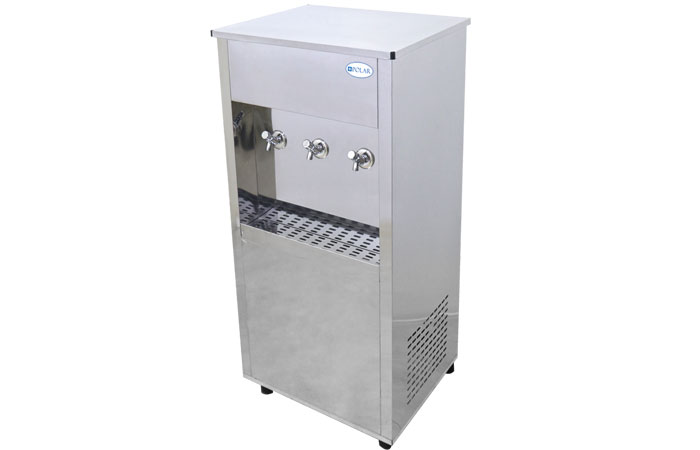

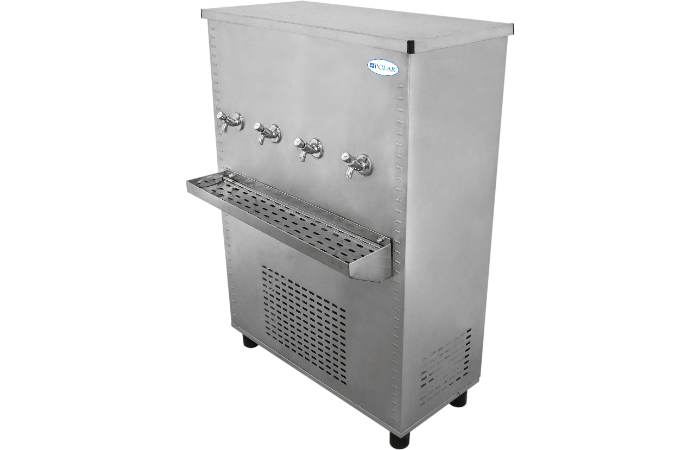

MODEL NO | PWT-25 T2 | PWT-35 T3 | PWT-45 T3 | PWT-65 T3 | PWT-85 T4 | PWT-100 T4/T5 | PWT-125 T5 | PWT-75 T3/T4 | PWT-150 T5/T6 | PWT-250 T5/T6 |
---|---|---|---|---|---|---|---|---|---|---|
EXTERNAL DIMENSION (H X W X D) | 127 X 56 X 59 (CM) | 127 X 58 X 59 (CM) | 127 X 62 X 59 (CM) | 127 X 73 X 59 (CM) | 127 X 94 X 59 (CM) | 127 X 103 X 64 (CM) | 127 X 105 X 66 (CM) | 127 X 78 X 59 (CM) | 127 X 103 X 69 (CM) | 127 X 105 X 79 (CM) |
COOLING CAPACITY | 25 GLN/HR | 35 GLN/HR | 45 GLN/HR | 65 GLN/HR | 85 GLN/HR | 100 GLN/HR | 125 GLN/HR | 75 GLN/HR | 150 GLN/HR | 250 GLN/HR |
STORAGE TANK CAPACITY | 50 L | 55 L | 63 L | 75 L | 101 L | 128 L | 140 L | 83 L | 168 L | 190 L |
NUMBER OF TAPS | 2 | 3 | 3 | 3 | 4 | 4/5 | 5 | 3/4 | 5/6 | 5/6 |
OUTER BODY | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA | SS 430-BA |
INNER BODY | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B | SS 304 -2B |
COMPRESSOR | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER | RECIPROCATINGPOWER |
POWER SUPPLY | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ |
REFRIGERANT | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) | R 134 A (CFC FREE) |
TEMP RANGE | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ |

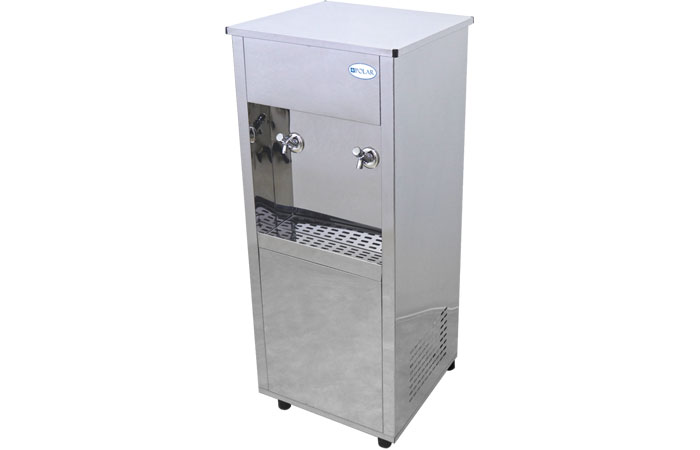

MODEL NO | ATM-PWT-25 T2 | ATM-PWT-45 T3 |
---|---|---|
EXTERNAL DIMENSION (H X W X D) | 127 X 53 X 53 (CM) | 127 X 62 X 53 (CM) |
COOLING CAPACITY | 25 GLN/HR | 45 GLN/HR |
STORAGE TANK CAPACITY | 50 L | 63 L |
NUMBER OF TAPS | 2 | 3 |
OUTER BODY | SS 430-BA | SS 430-BA |
INNER BODY | SS 304 -2B | SS 304 -2B |
COMPRESSOR | RECIPROCATINGPOWER | RECIPROCATINGPOWER |
POWER SUPPLY | 220 SINGLE PHASE 50/60 HZ | 220 SINGLE PHASE 50/60 HZ |
REFRIGERANTY | R 134 A (CFC FREE) | R 134 A (CFC FREE) |
TEMP RANGE | 7.2 ℃ TO 12 ℃ | 7.2 ℃ TO 12 ℃ |

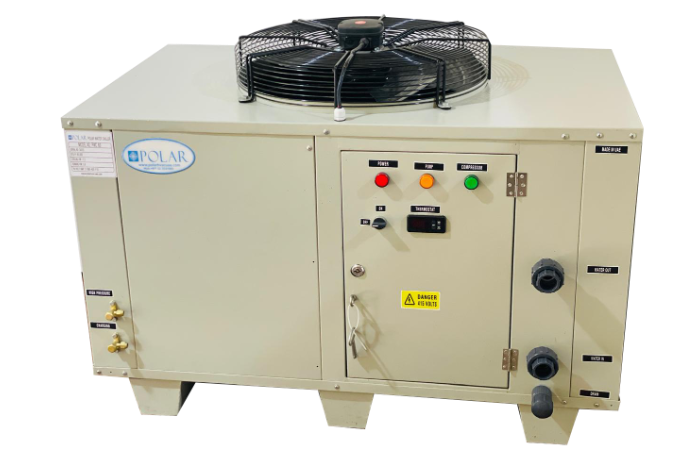

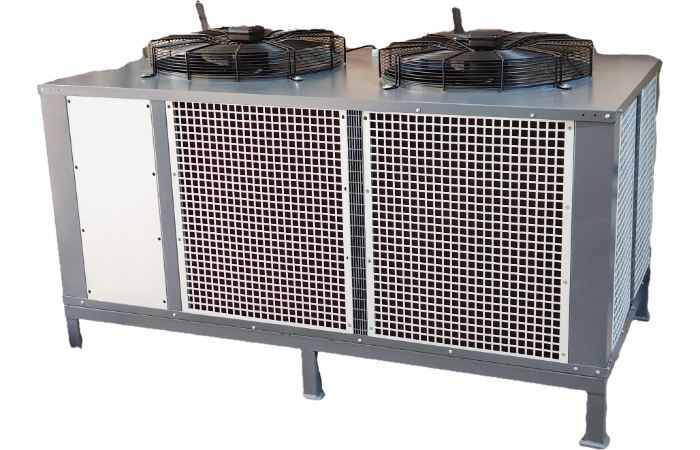

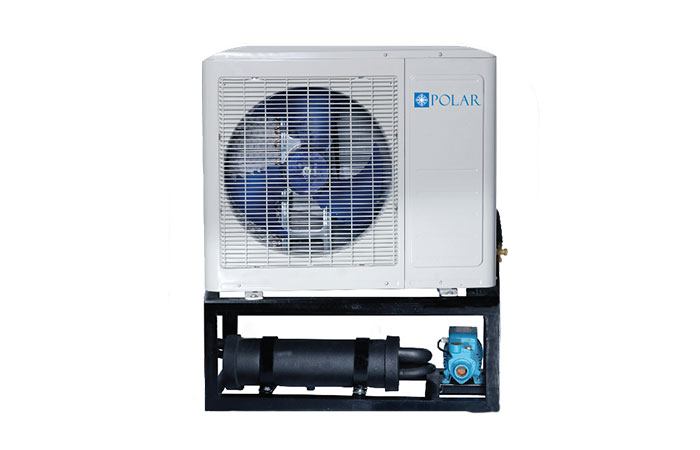

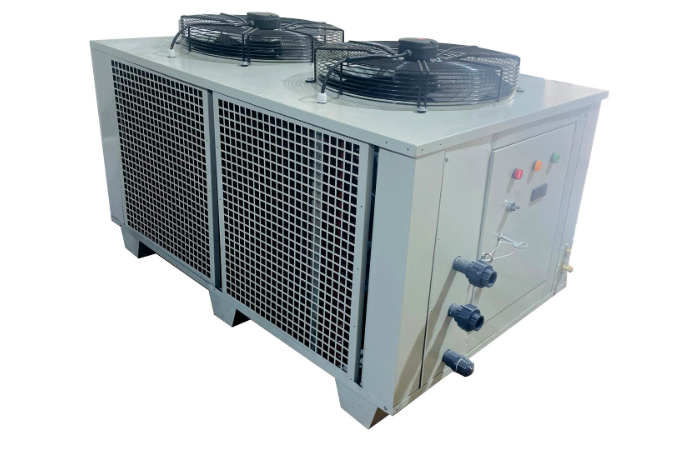

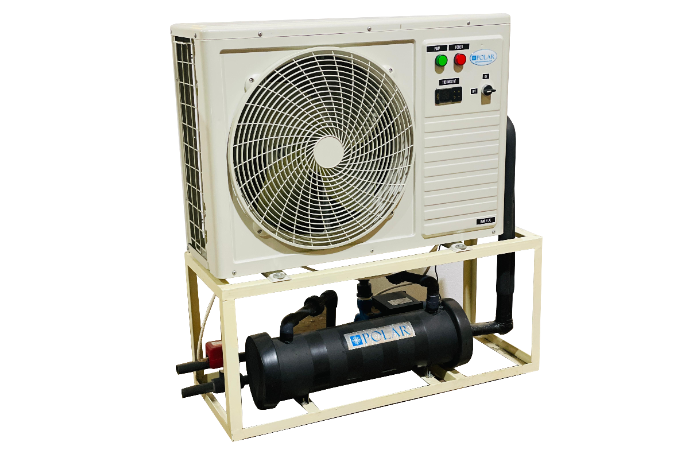

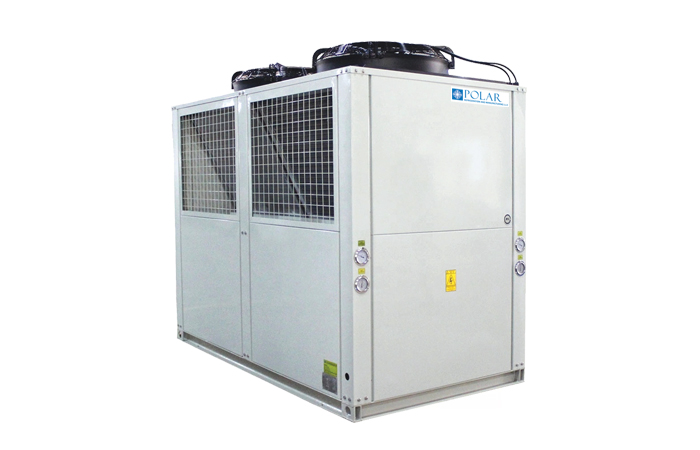

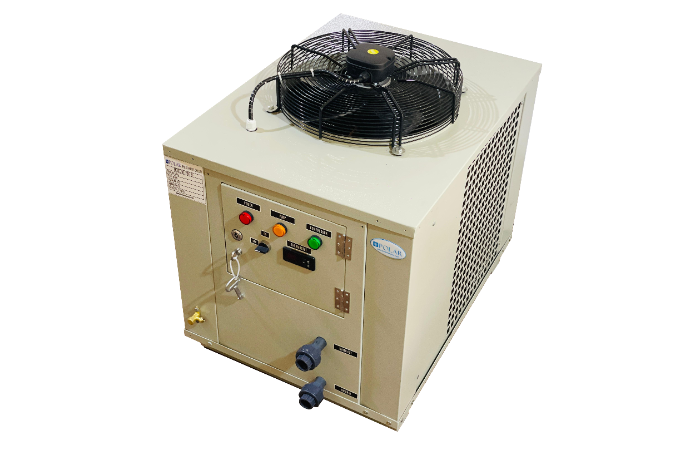

MODEL NO | PWC - 024 | PWC - 036 | PWC - 060 | PWC - 060 SST | |
---|---|---|---|---|---|
COOLING CAPACITY | BTU/Hr | 24000 | 36000 | 60000 | 60000 |
TR | 2 | 3 | 5 | 5 | |
COMPRESSOR QTY | No | 1 | 1 | 1 | 1 |
EVAPORATOR | TYPE | S.S. SHELL AND COPPER TUBE | |||
CONDENSER | TYPE | COPPER TUBE WITH ALU FINS | |||
REFIGERANT | GAS | R - 22/R 410a / R407 (OPTIONAL) | |||
WATER PUMP | HP | 0.5 | 0.5 | 0.5 | 0.5 |
WATER FLOW RATE | GPM | 5 | 7.5 | 12.5 | 12.5 |
TANK OUTLET TEMP | °C | 20 | 20 | 20 | 20 |
WATER TANK CAPTY | GALLONS | 300 | 500 | 1000 | 1000 |
WATER CONNECTION | IN/OUT INCH | 3/4 | 3/4 | 3/4 | 3/4 |
UNIT POWER | IN KW | 3 | 4.5 | 7.5 | 7.5 |
POWER SUPPLY | V/Ph/Hz | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 |
Highlights: Specifications, features and colors mentioned are subject to change without prior notice, for product improvement. |
